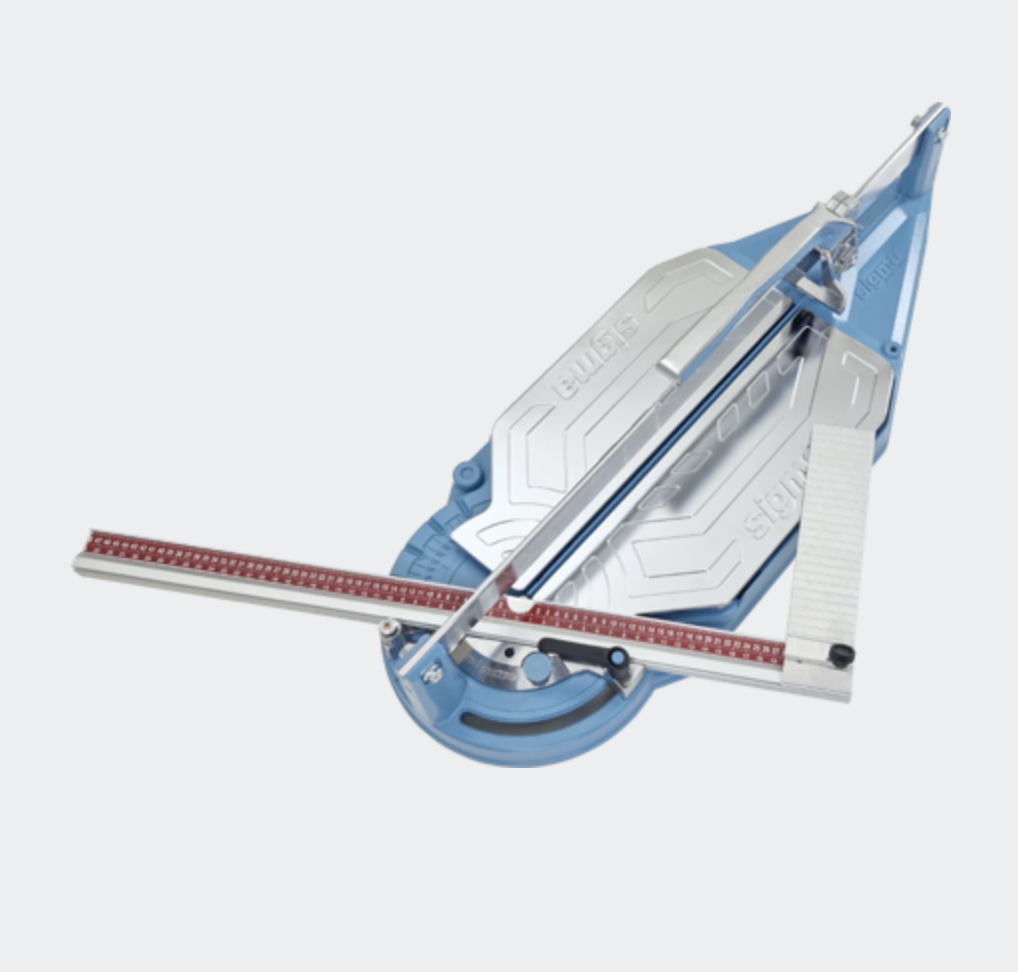

Sigma Art4BU Tile Cutter Taglia 70cm
New Series 4 UP handle models with traction engraving, practical and fast for cutting tiles.
Specifications:
- Type:Â Manual PULL Style

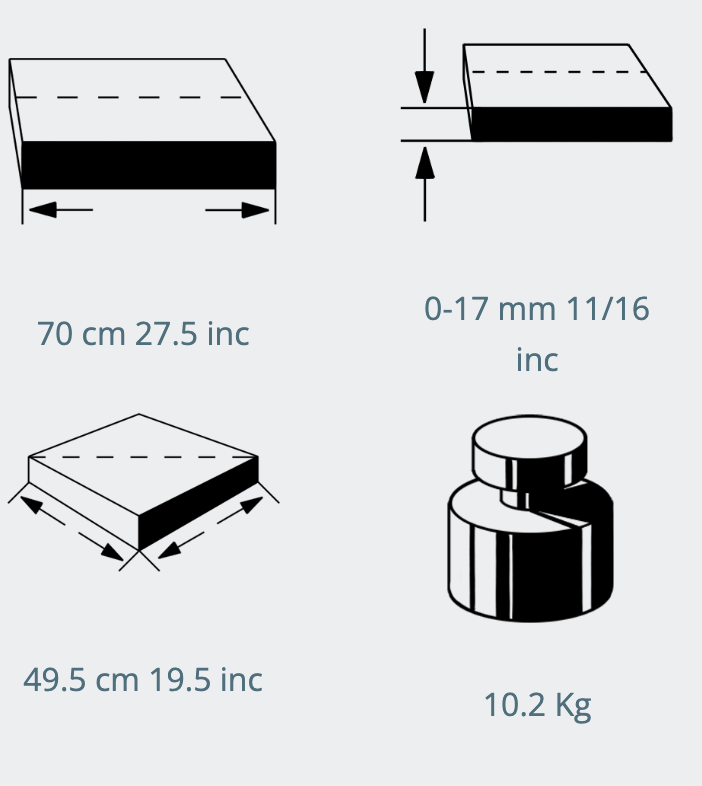

- Length of cut: 700mm
- Max diagonal cut length: 490mm
- Max cut thickness: 17mm
- Wide Split Foot 100mm
Features:Â
- Ergonomically shaped handle specific for pulling incision.
- CNC milled wheel holder recess and anti-friction metal shell to eliminate friction and lateral wear of the engraving wheel.
- The sliding carriage is wear-free , thanks to 3 double-row ball bearings which guarantee precision over time , with no need for maintenance.
- Automatic compensator in steel for adjusting the sliding preload of the carriage on the guide.
- 12 mm diameter engraving wheel
- The handle is mounted to the slide carriage with two thrust ball bearings for maximum precision.
Made in Italy
